Custom Crystal Light Panels for High-Impact Backlit Displays
Ultra-slim and clip-frame LGP panels engineered for bright, even backlit displays - custom-built for retail, corporate, and signage installations.
• Ultra-slim 6–10 mm optical acrylic
• Uniform edge-lit brightness (±5%)
• Custom sizing + fast nationwide delivery
Precision Lighting. Maximum Impact.
Our crystal LGP panels use precision laser-etched acrylic and edge-lit LEDs to deliver consistent, uniform backlighting across the entire surface. Choose the Ultra Slim panel for minimal depth or the Clip Frame panel for fast graphic change-outs – both engineered for clarity, durability, and high brightness.
Exceptional brightness with true-to-colour illumination.
Engineered Light. Minimal Depth.
Optical-grade acrylic and high-efficiency LEDs create smooth, uniform illumination without hotspots or dark patches. The Ultra Slim panel offers a sleek, frameless look, while the Clip Frame design provides a practical front-loading system for rapid updates.
Built for premium displays where space is limited but impact is essential.
Ultra Slim & Clip Frame LGP Panels for High-Impact Backlit Displays
Our Crystal Display panels are engineered using laser-etched LGP acrylic and high-efficiency edge-lit LEDs to deliver bright, even illumination across any graphic. Choose the Ultra Slim design for a premium, frameless look, or the Clip Frame system for fast, front-loading graphic changes – both built for clarity, durability, and commercial performance.

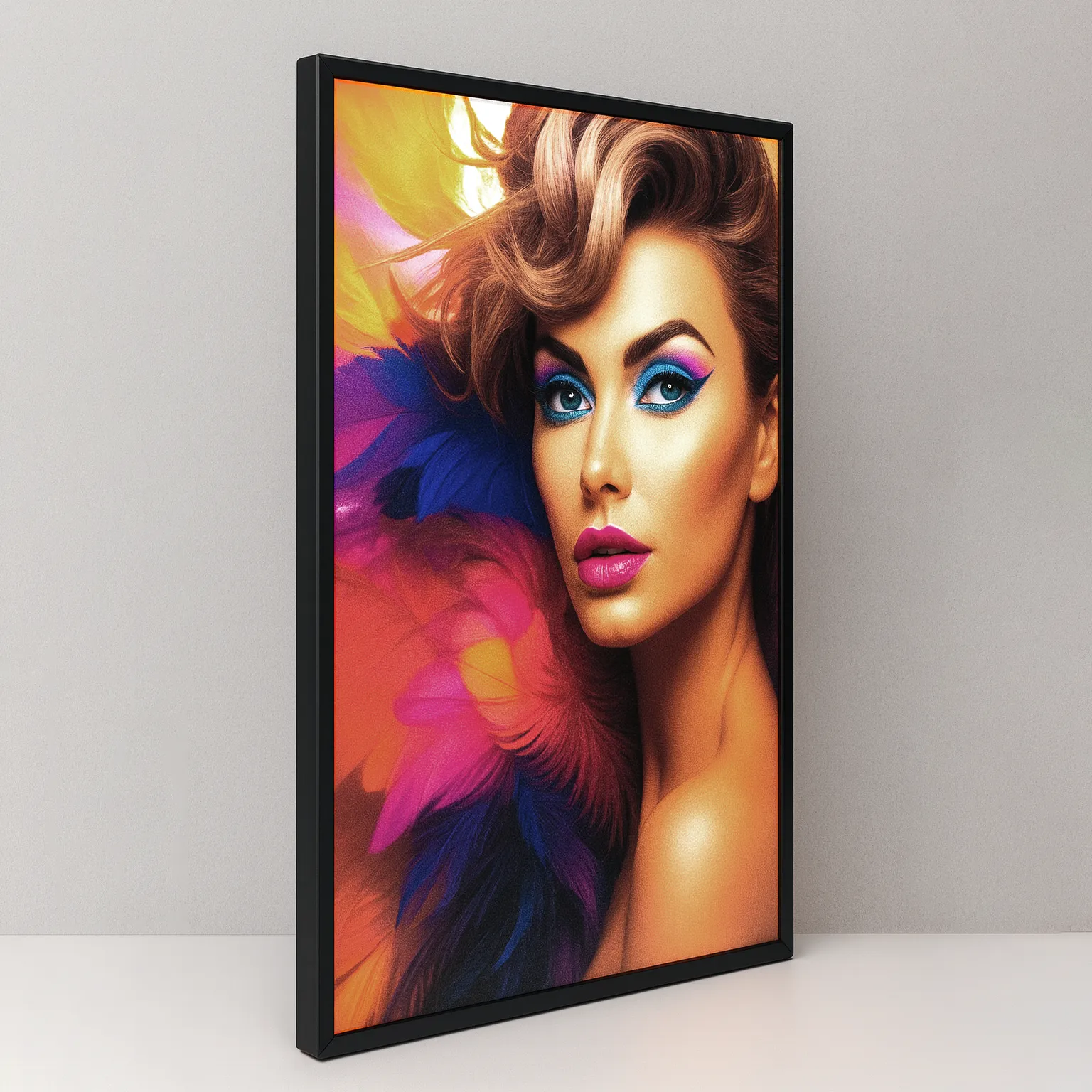

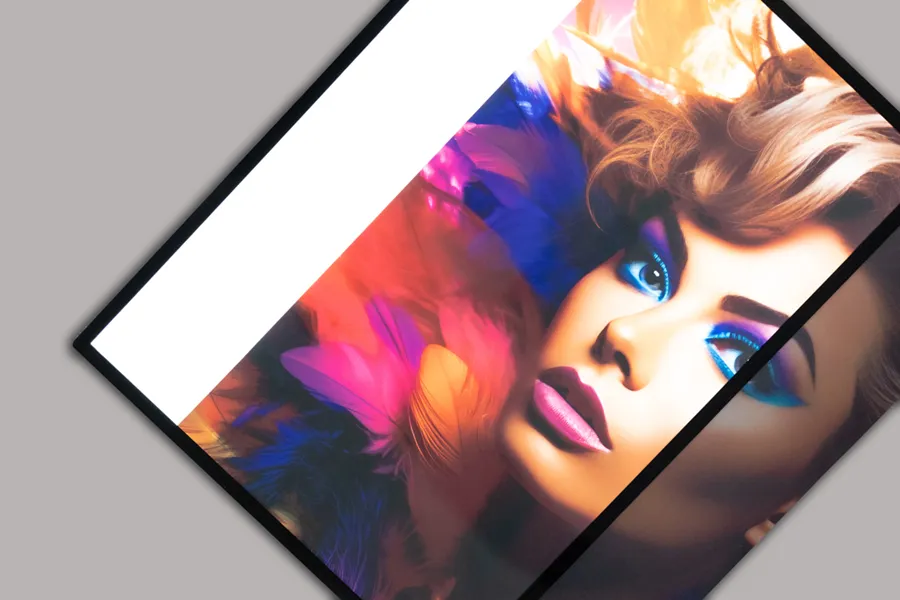

Ultra Slim LGP Panel
Thickness: 9.8 mm (profile base + tempered glass)
Best for: Premium retail displays, cosmetic counters, luxury interiors, frameless backlit visuals.
Features:
• CRI 80+ for accurate colour rendering.
• Outstanding brightness with edge-lit LED technology.
• 120° wide beam angle for even illumination.
• Even light distribution with laser-etched LGP acrylic.
• Tempered-glass face for protection and a premium finish.
• Graphics can be changed quickly behind the glass.

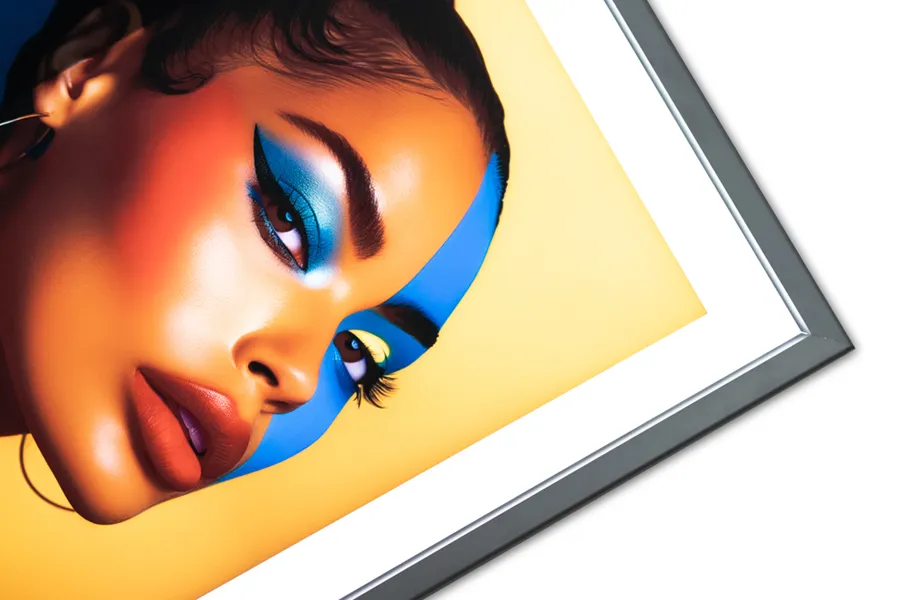

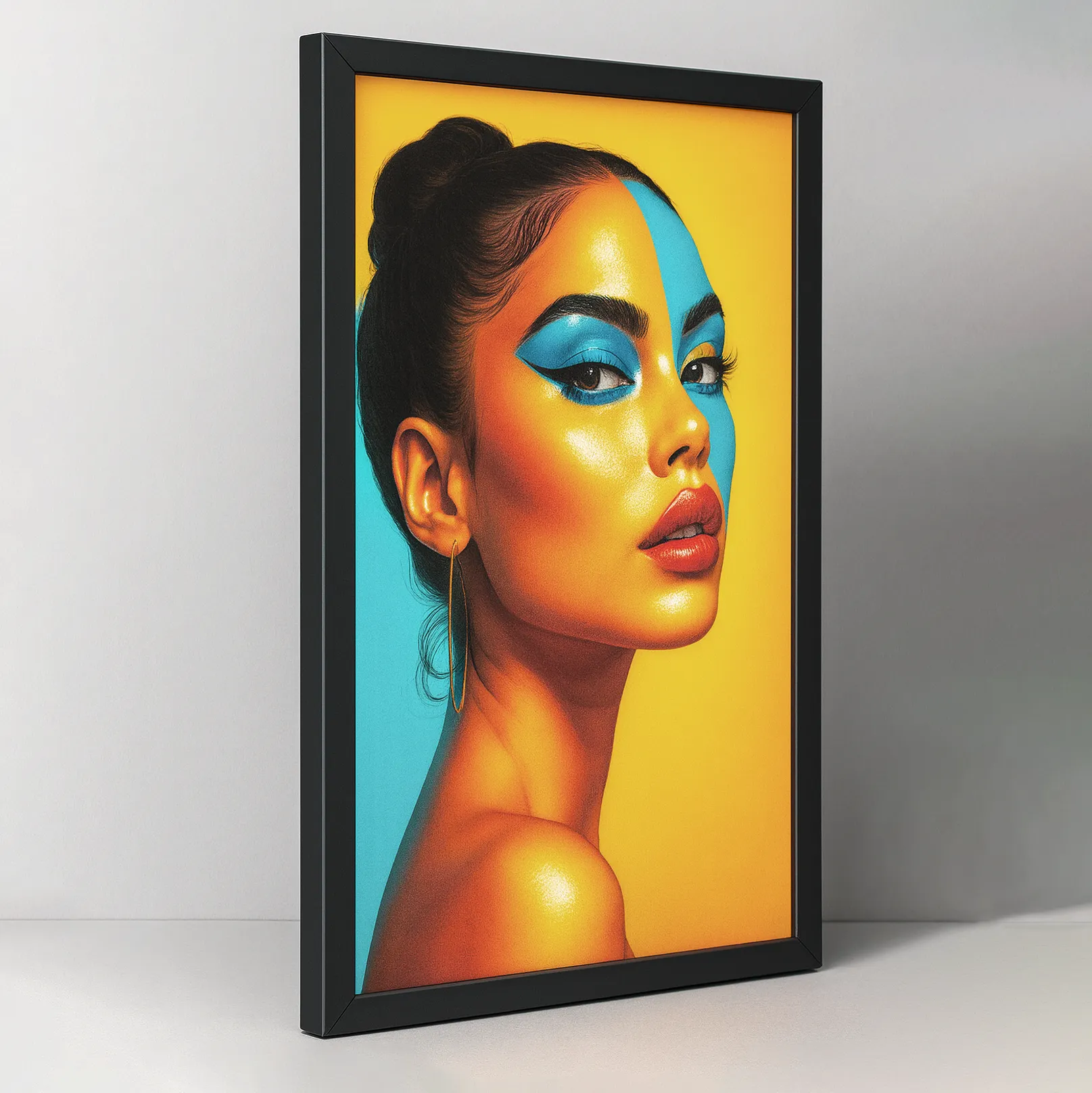

Clip Frame LGP Panel
Thickness: 19.5–20 mm (aluminium clip-frame profile)
Best for: High-traffic retail posters, promotions, shopfront windows, fast graphic change-outs.
Features:
• CRI 80+ for excellent colour rendering.
• Outstanding brightness with edge-lit LEDs.
• 120° wide beam angle for consistent illumination.
• Even light distribution via precision-etched LGP acrylic.

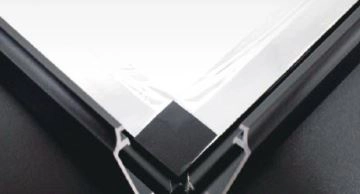

• All four sides clip open for quick, tool-free graphic changes.
• Durable aluminium frame for commercial environments.
Specifications
Ultra Slim LGP Panel
Enjoy bright, even illumination with Crystal Displays’ Ultra Slim light guide panels. Built with a tempered-glass face, laser-etched LGP acrylic, and edge-lit LEDs, these panels deliver premium clarity for high-end retail and commercial interiors. Graphics can be changed quickly and neatly behind the glass surface.
Thickness: 9.8 mm total profile.
Material: Tempered glass face, PC panel, LGP acrylic, back plate.
Lighting: Edge-lit high-efficiency LEDs.
Beam Angle: 120° wide beam angle.
CRI: 80+ for accurate colour rendering.
Brightness: Uniform illumination from laser-etched diffusion pattern.
Mounting: Wall-mount system with 10 mm front profile.
Power:
– A2: 13 W
– A3: 9 W
– A4: 7 W

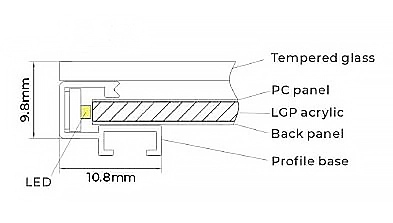

Cross-section schematic showing panel layers and LED position.

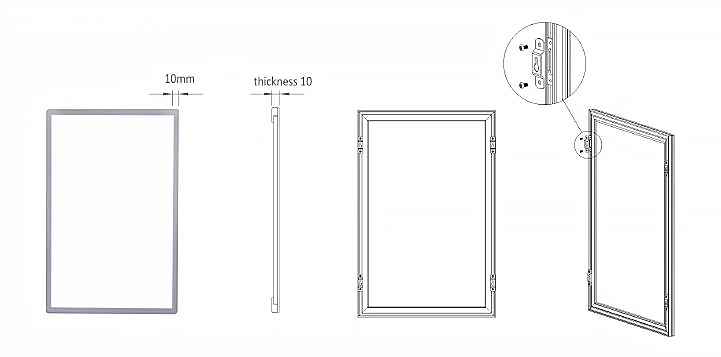

Standard wall-mount configuration for Ultra Slim LGP panels.
Frame Sizes - Custom Sizes Available on Request
| Frame size | Graphic size | Power | |
|---|---|---|---|
| A2 | 600 × 435 mm | 594 × 420 mm | 13 W |
| A3 | 427 × 312 mm | 420 × 297 mm | 9 W |
| A4 | 304 × 225 mm | 297 × 210 mm | 7 W |
Specifications
Clip Frame LGP Panel
Crystal Displays Clip Frame panels combine bright, even illumination with a durable aluminium snap-frame system designed for rapid graphic change-outs. Edge-lit LEDs, precision LGP acrylic, and a 120° beam angle ensure consistent brightness across the entire display – ideal for retail promotions and high-traffic environments.
Thickness: 20–25 mm aluminium clip-frame profile.
Material: Aluminium profile, PC panel, LGP acrylic, back panel.
Lighting: Edge-lit high-efficiency LEDs.
Beam Angle: 120° wide beam angle.
CRI: 80+ for accurate colour rendering.
Brightness: Even illumination via laser-etched LGP engraving.
Frame: Front-loading aluminium clip frame (all four sides open for tool-free access).
Mounting: Wall-mount system with 25 mm front profile & 20 mm body thickness.

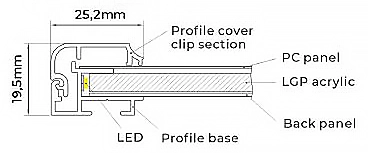

Cross-section schematic showing panel layers and LED position.

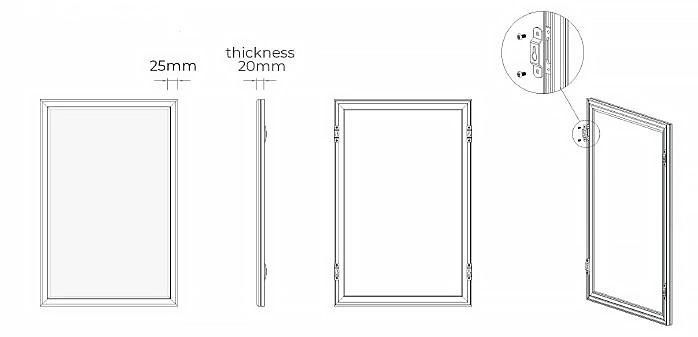

Standard wall-mount configuration for Clip Frame LGP panels.
Frame Sizes - Custom Sizes Available on Request
| Frame size | Graphic size | Power | |
|---|---|---|---|
| A2 | 624 × 450 mm | 594 × 420 mm | 18 W |
| A3 | 450 × 327 mm | 420 × 297 mm | 12 W |
Available Options
Enhance your Crystal Display installation with optional accessories designed for flexibility, ease of use, and brighter visual impact.
Free-Standing Brackets
Portable display solution for retail floors and promotional spaces. Provides stable support without wall mounting and allows panels to be repositioned easily.
Printed Photographic Film
High-resolution backlit photographic film engineered for Crystal Displays. Delivers vivid colour, fine detail, and even brightness across the entire panel.
Remote LED Dimmer
Wireless remote-controlled dimmer for full-range brightness adjustment. Compact, easy to install, and ideal for environments requiring flexible lighting levels.
Performance You Can Trust
A curated overview of certifications and the key lighting features that make our LGP panels stand out.
Unpack the Possibilities
Get a Fast, Personalised Quote
Tell us what you need and we’ll get back to you with a tailored quote – no obligations.
Not sure what you need?
Just fill in the form and we’ll guide you through the best options for your space and budget.
Please note: Sign Box SA supplies products only and does not offer installation services. We can, however, recommend a trusted installer in your area if required.
